Shoring system BERTOUR

Lightweight shoring system

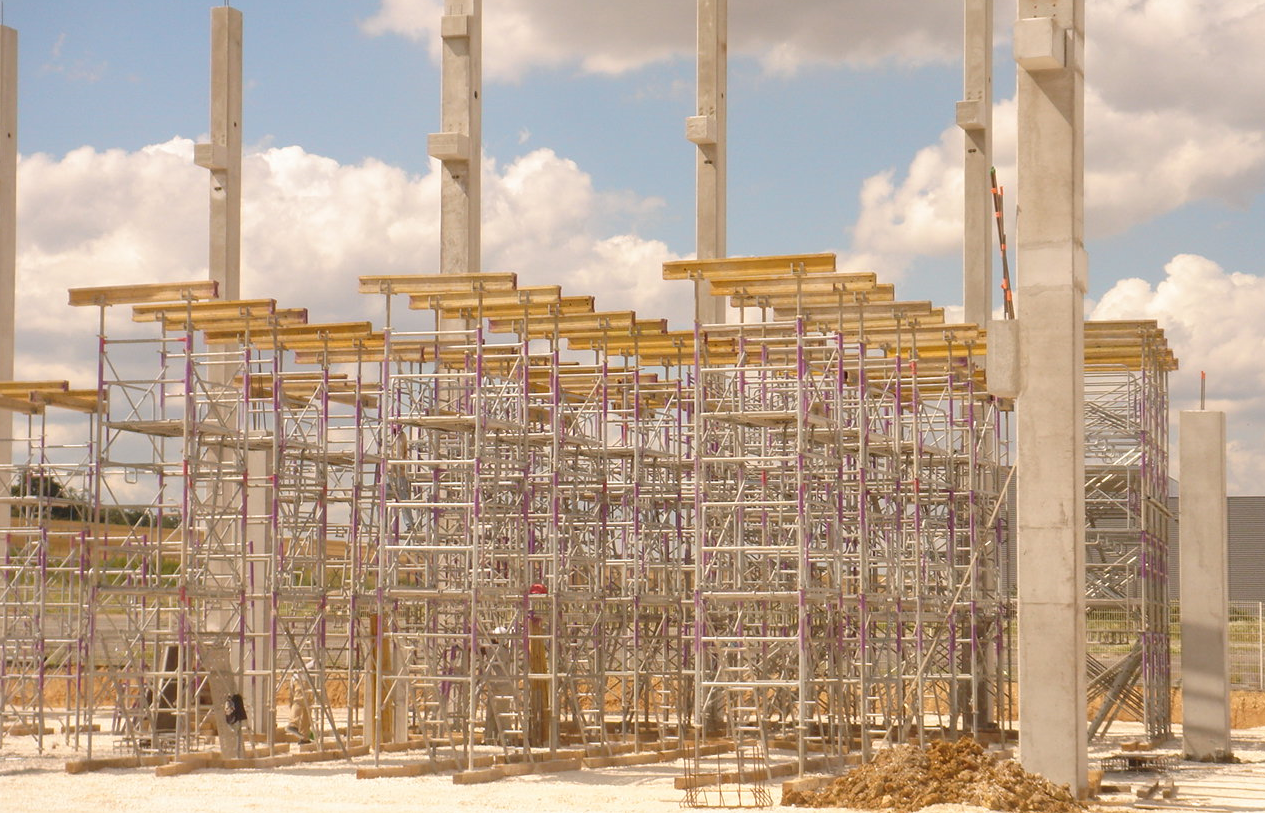

The BERTOUR shoring scaffold from the Scafom-rux range of professional scaffolding systems is suitable for numerous situations on every construction site. Maximum attention to safety in each phase: during construction and during use. Easy entry to the entrance, floor sections with anti-slip surface, safety rails and high maximum load.

System diagonals for accurate erection and assortment of various new components, such as ladder-/ entrance frames to enable a method of erection/ dismantling within the maximum possible safety requirements.



Characteristics

NEW! User friendly and easy assembly. All elements interlock easily with no extra elements and automatic safe erection thanks to a proprietary connector guardrail system. Fully systemized for a quick erection.

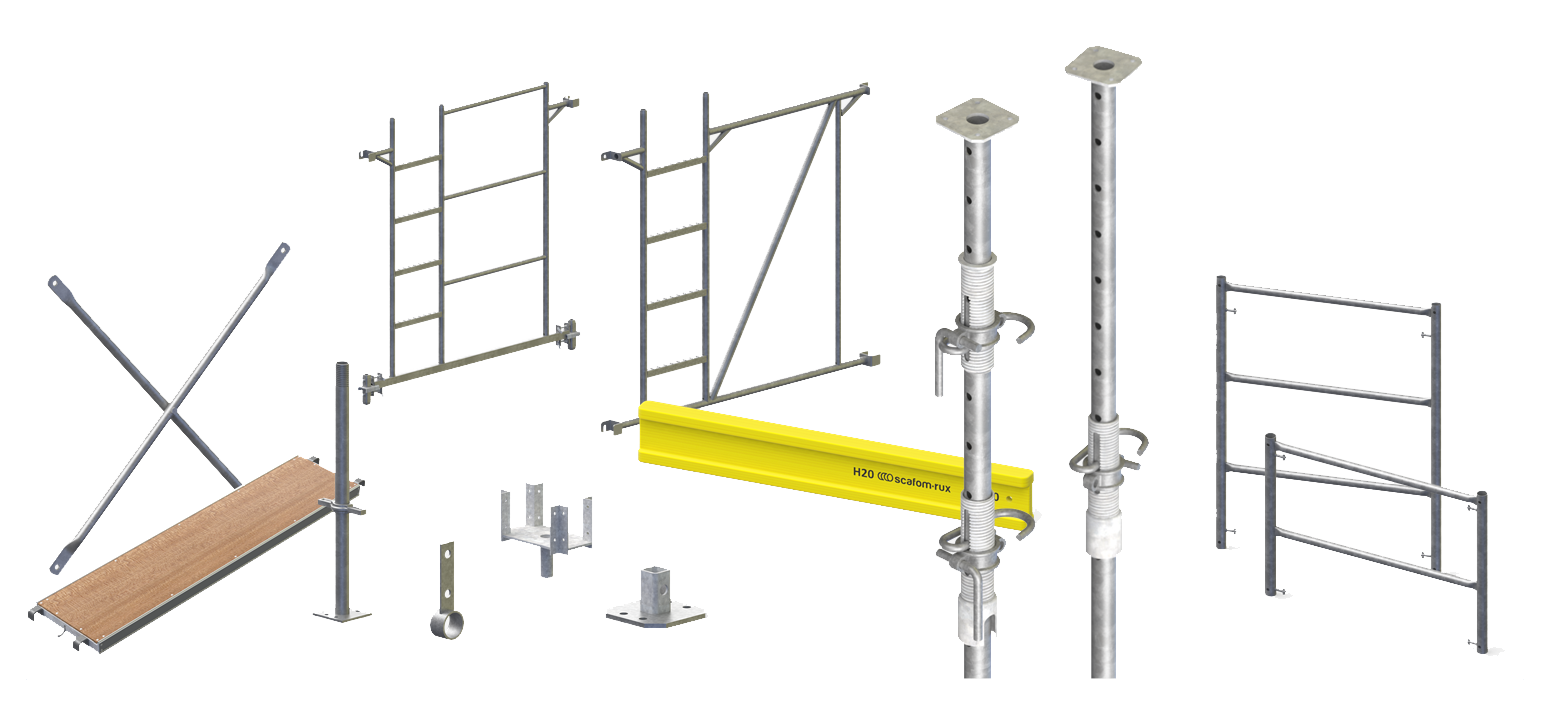

Basic Components

  1. Base Jack
  2. Base Plate(optional)
  3. Frame 1.50x1.20m
  4. Frame 0.925x1.20m (optional)
  5. Entrance Frame 1.50mx(1.60m)
  6. Ladder Frame 1.50mx(1.60m)
  7. Ladder Frame 0.925x(1.60m)
  8. Platform 0.48x(1.60m)
  9. Platform/lid 0.71x(1.60m)
  10. Innertube 1.658m
  11. Adaptor with pin
  12. Adaptor with pin (optional)
  13. Intermediate support (optional)
  14. 4-Way Forkhead
  15. Alu/Timber/Steel beam (optional)

Find more product documentation such as: Brochures, Certifications, Product Assortment Catalogues, Video Animations, Erection Manuals in the Download center



Product Features

  • Shoring Tower System with strong frames and cross-braces for most efficient shoring applications.
  • Locked steel planks with a genuine and well proven anti-slip surface
  • Self-locking aluminum/plywood access platform at all work levels
  • Tough, robust jack-holder secures all hoisting maneuvers
  • All components are hot dip galvanized applying a protective zinc coating to prevent rusting.
  • Simple and efficient interconnection of frames, entrance and ladder frames, and/or braces.
  • All frames produced from high grade steel.
  • High safe working loads.

Specifications

Maximum load bearing capacity

Maximum loads up to 24 tons (six tons per standard ; maximum 4 standards high)


Certification

complies a.o. to product standard NF P93-551


Load tests

by CEBTP at various tower configurations
