Frame scaffolding system FRAMESCAFF in 07 dimensions
Scafom-rux' construction scaffold FRAMESCAFF is aligned to 07 dimensions and is fully compatible with the most frequently used facade scaffolding solutions. Fewer basic parts, combined with a simple, self-aligning assembly concept make this scaffolding system highly efficient and time-saving.
To see the full range of complimentary scaffolding parts, have a look at our accessories.
Characteristics
- Self-aligning assembly
- Low product weight
- Field length up to 4m
- Compatible with other commonly used façade scaffolding systems
- Decks secured against lifting
- Wide range of accessories
- Easy handling - productivity increase
- + 40% compared to modular scaffolds
- + 130% compared to traditional tube and fittings

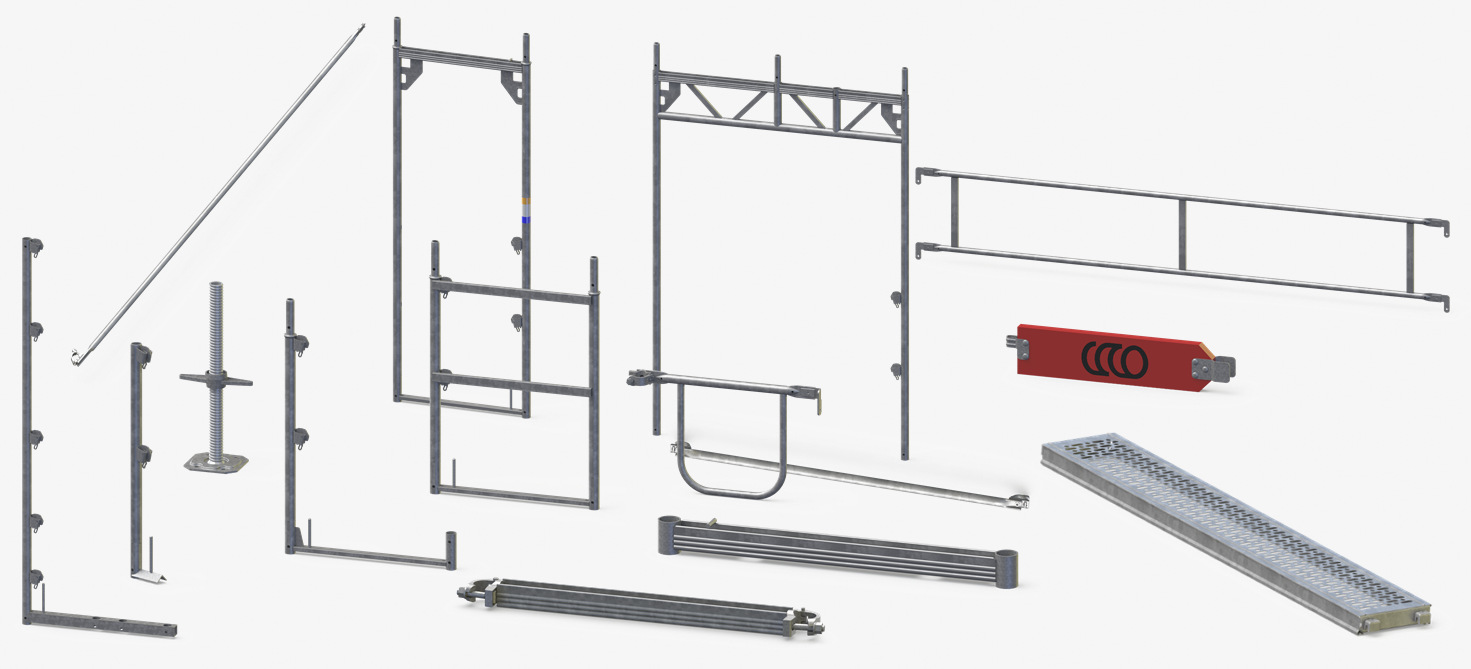

Basic components:
- Base jack;
- Frame base plate;
- Frame;
- Diagonal;
- Floorboards (aluminium with U-support);
- Ledger;
- Length side board;
- Longitudinal toeboard;
- End toeboard
Unlimited possibilities
In addition to basic components, there is also an extensive range of clever, convenient and very well-designed accessories. These make FRAMESCAFF® adaptable and flexible for use in all kinds of situations.
Specifications
Construction scaffold, industrial scaffold, weather and construction site protection
Standard frame width 0.73m, standard frame height 2.00m
Approval Certificate.........No. Z-8.1-924
Mixing Approval...... No. Z-8.1-924
Maximum floor loading up to 6 kN/m2
Z-8.1-924-Framescaff73-German-approval-until-05-2021-page-1-EN.pdf Animations
