5 common challenges on complex construction sites – and how modular scaffolding can help

When you plan scaffolding for a straightforward façade, the basic requirements are usually easy to define. But what happens when space is limited, the building geometry is unusual or the construction schedule changes halfway through the project?

This is where scaffolding projects can become more challenging. You may have to work around existing structures, machinery, traffic routes or other trades. At the same time, your scaffold still needs to provide safe working areas, reliable access and the required load capacity.

In these situations, your initial scaffold design is often only the starting point. You need a system that can work with the conditions you actually find on site and, where required, can be adapted as the project progresses.

This is one of the key advantages of modular scaffolding systems. Standardised components in combination with flexible connection options give you more possibilities to configure the scaffold around the specific requirements of your project.

So, what are the most common challenges you may face on a complex construction site and where can modular scaffolding help?

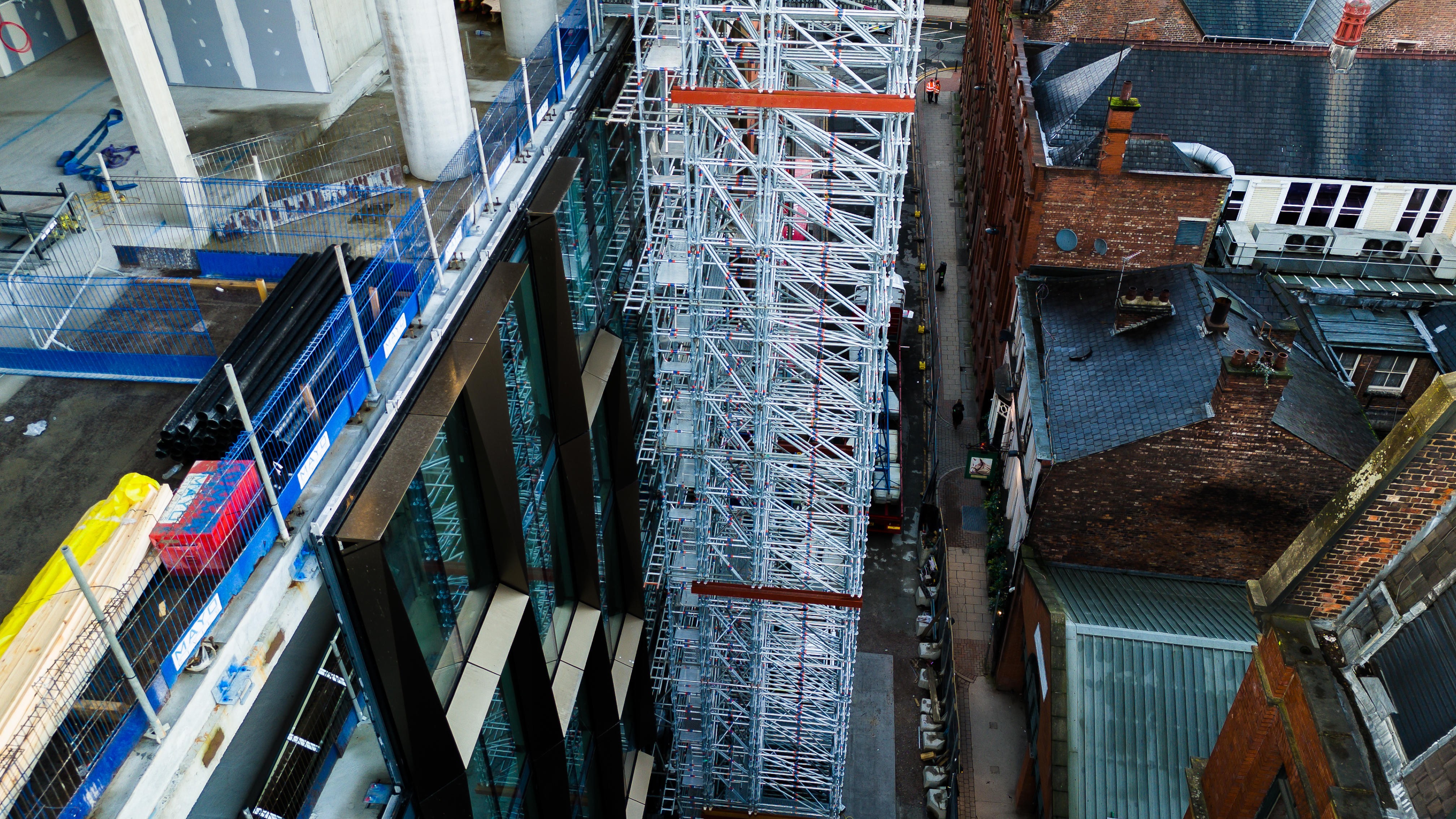

1. Limited space and restricted access

You know the situation: the building needs scaffolding, but there is hardly any room left around it. On an urban construction site, you may have to work within the boundaries of a pavement, road or neighbouring property. On an industrial site, pipes, tanks, machinery or existing installations can restrict where you can position your scaffold. The challenge is to make the best use of the available space without compromising your working areas, access routes or the stability of the scaffold.

With a modular scaffolding system, you can combine standard components in different configurations to work around existing structures and site restrictions. Depending on the system, you can adapt the scaffold to different widths, lengths and geometries while maintaining the required working and access areas.

This becomes particularly useful when several restrictions come together. Instead of trying to make the site fit a predefined scaffold layout, you can plan the scaffold around the conditions you actually have.

2. Scaffolding requirements that change during the project

Scaffolding requirements can change as a construction project progresses. Take a façade project as an example. At the beginning, you may need access to several levels for masonry or façade work. As individual sections are completed, access requirements can change. Working platforms, access points or sections of the scaffold may then need to be modified to suit the next phase of work.

This is one area where a modular scaffolding system can be useful on complex construction sites. Modular systems use standardised components and defined connection points, allowing scaffold structures to be assembled in different configurations. Depending on the system and the structural requirements, components can be added, removed or repositioned as the project progresses.

Of course, this kind of adaptability is not exclusive to modular scaffolding. Tube-and-coupler systems can also be modified to meet changing requirements. The difference lies in how the respective systems are configured and connected.

Read more about the differences of modular vs tube and coupler scaffolding here:

With modular scaffolding, the defined connection points and standardised components provide a range of pre-defined configuration options, which can be particularly useful when the scaffold needs to accommodate different layouts, access requirements or building geometries during a project.

For you as a scaffold contractor, this can make it easier to adapt the scaffold to changing project conditions without necessarily redesigning the entire structure from scratch. However, every modification still needs to be planned and checked against the applicable structural and safety requirements. The actual possibilities depend on the scaffolding system, its configuration and the requirements of the specific project.

For complex construction sites, the key is therefore to choose a scaffolding system that provides the configuration options you are likely to need – both for the initial construction phase and for the changes that may follow.

3. Different loads, working areas and access requirements

On a complex project, you may have one area where the scaffold is mainly used for façade work, another where materials need to be stored temporarily, and another where several trades are working at the same time. On an industrial site, you may also need to provide access to pipes, machinery or plant components while creating working platforms for maintenance teams. Each of these applications can influence your load requirements, platform configuration and access solution.

Before you start planning, ask yourself: What will actually happen on each platform? How many people will use it? Will tools or materials be placed there? Does equipment need to be handled at height? And how will workers move between the different levels?

Read more about local load class requirements here:

Your load classes need to reflect the intended use of the scaffold and the applicable requirements. At the same time, your access points and platform arrangement need to work for the way the scaffold will be used in practice.

A modular scaffold system allows you to combine different components and configurations within one overall structure. Depending on your project requirements, this can include working platforms, access solutions, stair towers and other components. Instead of treating the entire scaffold as one uniform structure, you can adapt different areas to the work that actually needs to be carried out there.

4. Scaffolding logistics on complex sites

On a complex construction site, getting the scaffold to the right place at the right time can be a challenge in itself. Storage space may be limited, site access can change throughout the project, and scaffold material often has to share transport routes with other trades. If several areas are being worked on at the same time, the way you handle and move your material becomes an important part of the planning.

This is particularly relevant when a project progresses in sections. Material delivered for one phase may later be needed somewhere else, while dismantled components may have to be stored until the next part of the scaffold is required. On a busy site, you may also have limited storage space or restricted access for deliveries and internal transport. The more phases and work areas you have to coordinate, the more important it becomes to know which components are needed where and when.

This was exactly the challenge faced by the scaffolders at Kinlan Scaffolding. Watch the video to see how they solved it using the RINGSCAFF modular scaffolding system.

Modular scaffolding can offer practical advantages here through its standardised components. Depending on their design, components can be systematically stacked, bundled or stored by type, making it easier to organise material in limited storage areas and prepare it for the next construction phase. Standardised components can also simplify loading, unloading and internal transport, particularly when material needs to be moved between different areas of a large site.

The benefit is not that modular scaffolding removes logistical challenges. Rather, a consistent range of components can make material flows easier to organise across different construction phases. How much this helps in practice depends on the scaffold design, component dimensions and weight, the available storage and transport routes, and how material movements are planned on site.

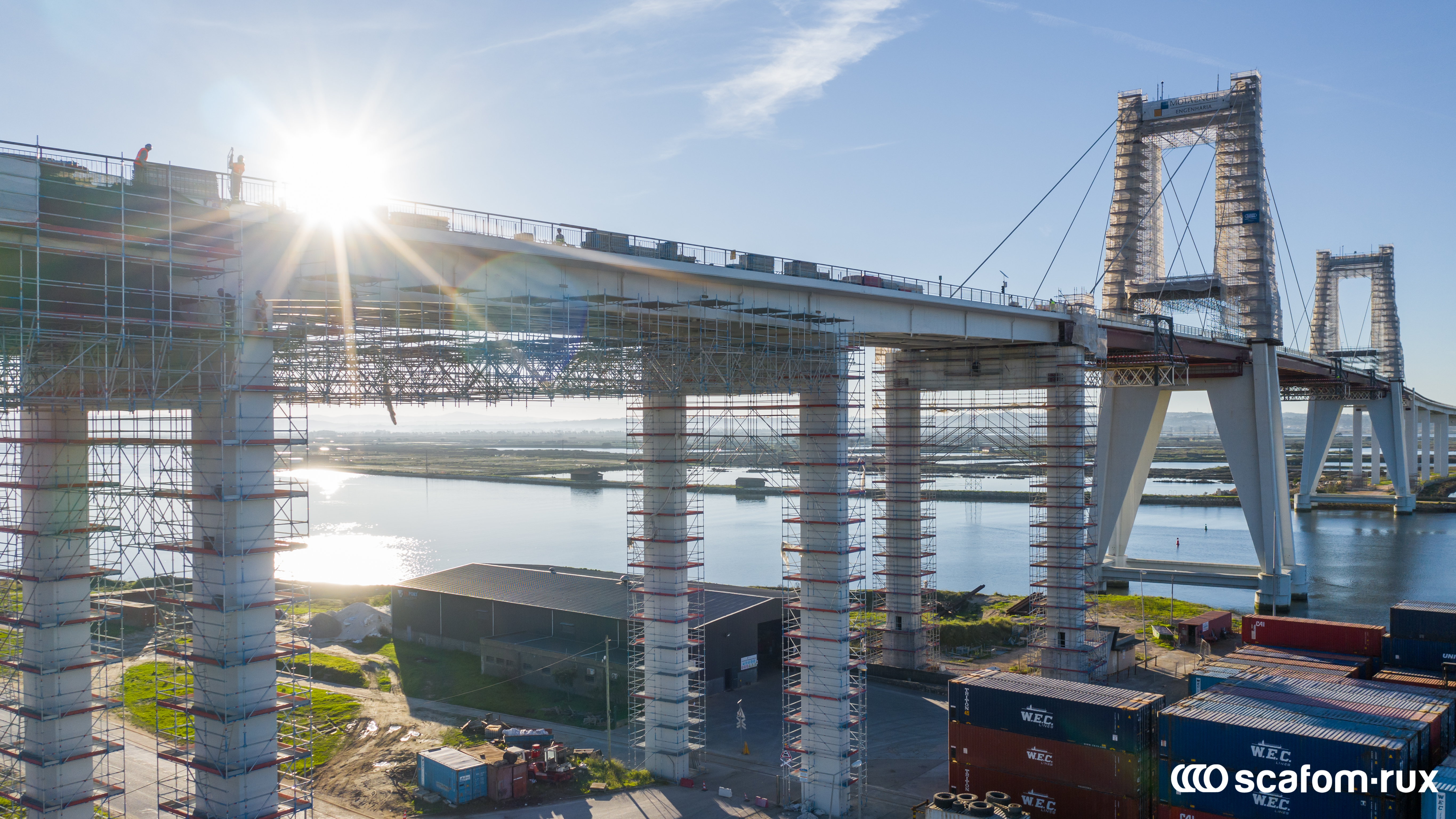

5. Complex building geometries

Some structures make scaffold planning straightforward. Others definitely do not. If you are working on a bridge, industrial plant, tank, curved structure or complex infrastructure project, you may need to follow irregular geometries or provide access to areas that are difficult to reach. You might be dealing with different angles, elevations, offsets and connection points, while still needing to create stable working and access structures.

This is another situation where the flexibility of modular scaffolding can be useful. Depending on the system, multiple connection points and a range of standard components allow you to configure the scaffold around different geometries and project requirements.

Of course, not every complex structure can simply be solved by combining standard components. If you are dealing with unusual geometries, loads or environmental conditions, structural design and verification remain essential.

But when a standard scaffold layout is no longer enough, having more configuration options can give you greater flexibility when developing the right solution.

How Modular Scaffolding Can Make the Difference

The choice of scaffolding system can have a direct impact on how effectively you can deal with the conditions of a project. Modular scaffolding gives you a system based on standardised components and defined connection options that can be combined to create different scaffold layouts.

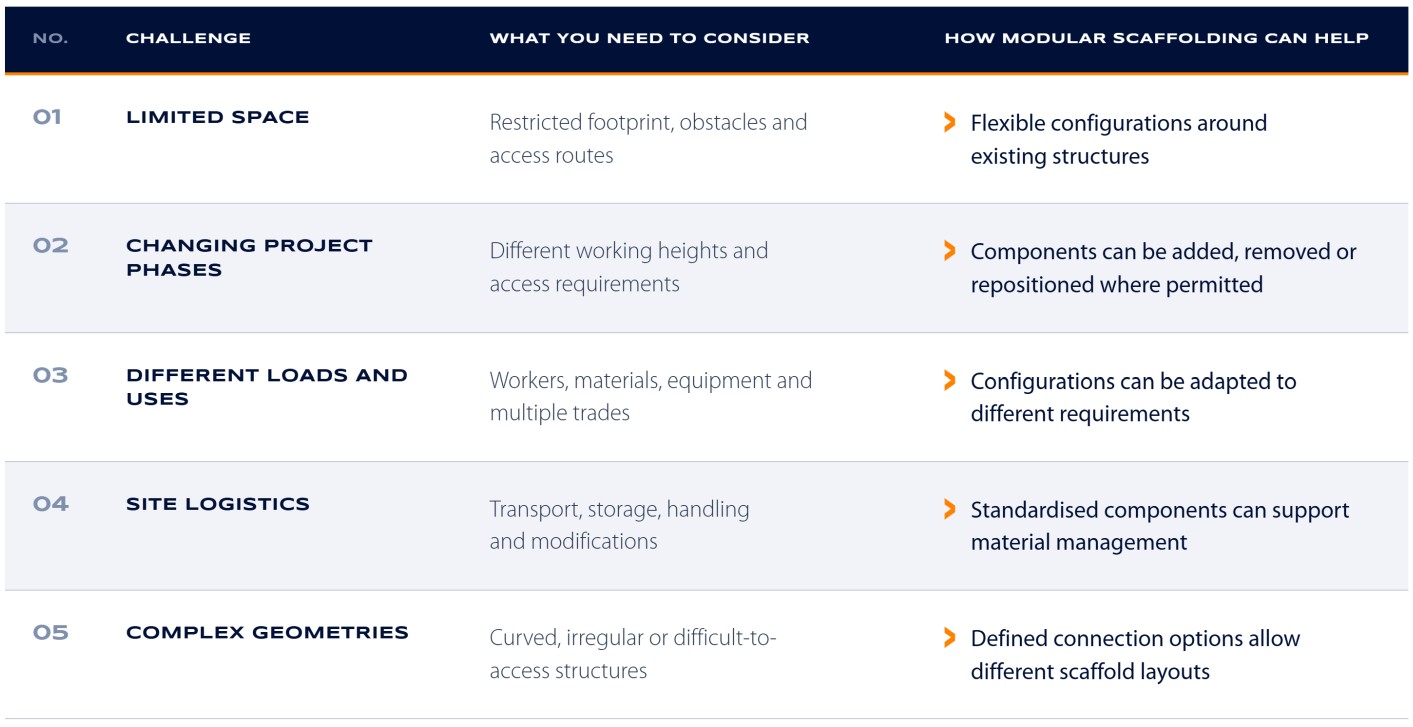

The table below brings the key points together and shows where these characteristics can be useful on complex construction sites.

Modular scaffolding does not replace proper planning or structural verification. The selected system and configuration must still meet the applicable standards, load requirements and project-specific conditions.

For complex projects, the configuration options offered by the scaffolding system can therefore be an important consideration when selecting the right solution.

For more information on our services and modular scaffolding solutions, download our free scaffolding brochures.

FAQ – Modular scaffolding

What is modular scaffolding?

Modular scaffolding is a system based on standardised components that can be connected in different configurations. This allows you to adapt scaffold structures to different building geometries, loads, access requirements and project phases.

What are typical applications for modular scaffolding?

You can use modular scaffolding for a wide range of applications, including façade work, industrial maintenance, plant shutdowns, energy projects, bridges, infrastructure and other complex structures.

Can you combine modular scaffolding components from different manufacturers?

Yes, in some cases. Certain modular scaffolding systems are specifically approved for use with components from other manufacturers. For example, Scafom-rux RINGSCAFF has mixing approvals for several other Ringlock systems. This allows scaffold contractors to combine approved components from different manufacturers within the specified conditions.

However, components should not be mixed simply because they appear to be compatible. The specific combination must be covered by the relevant mixing approval and used according to the applicable technical documentation and structural requirements.
